Volume – Up to 180,000 CFM / 305,000 m3/h
Static Pressure – Up to 36″ @ 70°F / 915mm @ 20°C
Maximum Temperature – 750°F / 400°C
For fans less than 36″/900mm or less than 50,000 CFM/85,0000 m3h, see Cincinnati Fan model HDBC.

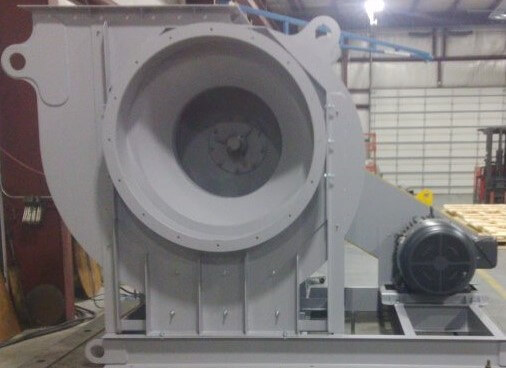

Type – Centrifugal Backward Curved Blades
Diameters – 40 to 60 inches / 1016 to 1524mm

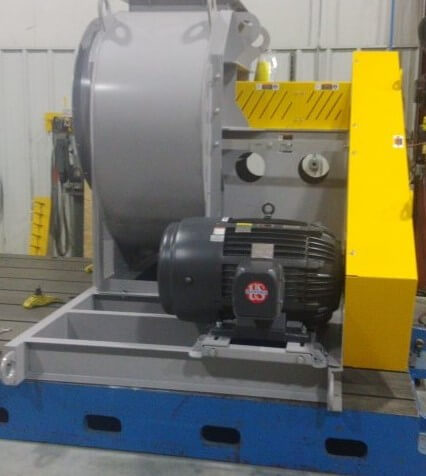

Belt Drive Arrangement 9CB available up to 250 HP. HP above 250 Consult Factory.
Direct Drive Arrangement 8 available up to 600 HP.
Direct Drive Arrangement 4 Consult Factory.
Oven and Drying Systems
For Industrial Backward Curved Fans 36” and under, please see the Cincinnati Fan and Ventilation HDBI Series product offering.
