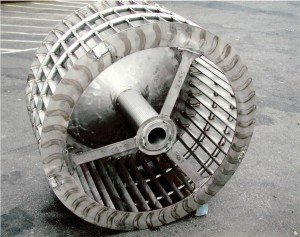

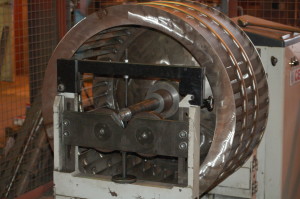

Daniels Fans manufactures high temperature industrial forward curved bladed fans in belt drive and direct drive. Forward curved bladed fans produce high volumes at slower speeds than backward inclined bladed fans. Fans are available as plug fans and housed fans. Shafts and bearings are air cooled – no water cooling required.
Performance Range
Volume – 2000 to 175000 CFM / 3500 to 300000 m3/h
Static Pressure – Up to 16″ @ 70°F / 400mm @ 20°C
Maximum Temperature – 1650°F / 900°C
Design/Construction
Type – Centrifugal
Diameters – 12.25 to 73 inches / 310 to 1850mm
Shaft – Air cooled
Construction Materials
Steel – Weldox, Other Grade
304 – Stainless Steel
316 – Stainless Steel
309 – Stainless Steel
310 – Stainless Steel
330 – Stainless Steel
Duplex Stainless Steel 2205
Inconel 617
Incoloy 800 and 800H
Typical Applications
Heat treating air circulation
Preheating
Homogenizing
Annealing
Float furnaces
