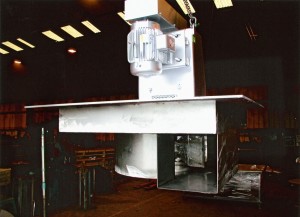

Daniels Fans manufactures high temperature industrial radial bladed fans in direct drive and belt drive. Fans are available as plug fans or housed fans. Shafts are air cooled; water cooling not required.
Performance Range
Volume – 600 to 145000 CFM / 1000 to 250000 m3/h
Static Pressure – Up to 80″ @ 70°F / 2000mm @ 20°C
Maximum Temperature – 2200° F / 1200°C
Design/Construction
Type – Centrifugal
Diameters – 14 to 102 inches / 350 to 2600mm
Shaft – Air cooled
Construction Materials
Steel – Weldox
304 – Stainless Steel
316 – Stainless Steel
309 – Stainless Steel
310 – Stainless Steel
330 – Stainless Steel
Duplex Stainless Steel 2205
Incoloy 800 and 800H
Inconel 600, 601 and 617
Hastelloy Series Alloys (X, C-276. Etc.)
Cronite Cast Hubs with Alloy Blades (HR4 and H23SP)
Cronite Cast Complete Impeller Assembly (HR4 and H23SP)
Typical Applications
Heat treating air circulation
Annealing
Gas recirculation
Glass furnaces
