Housed Fan Assemblies

Models: MFC (forward curved), OPB (radial design) and BIF (backward inclined)

Housed Fan Descriptions:
Housed fans include: Impeller, shaft, bearings, insulated plug, bearing pedestal and scroll housing (insulated or uninsulated).

Options for fan assemblies:

  • Stuffing box type shaft seal.
  • Belt Drive or Direct Drive
  • Arrangements 1, 8, 9, 9CB and 4 (Contact Daniels Fans)
  • Belt Guard
  • Shaft and Bearings Guard
  • Inlet and Outlet Flanges
  • Drain
  • Inspection Door
  • Flexible Connections (Inlet and Outlet)

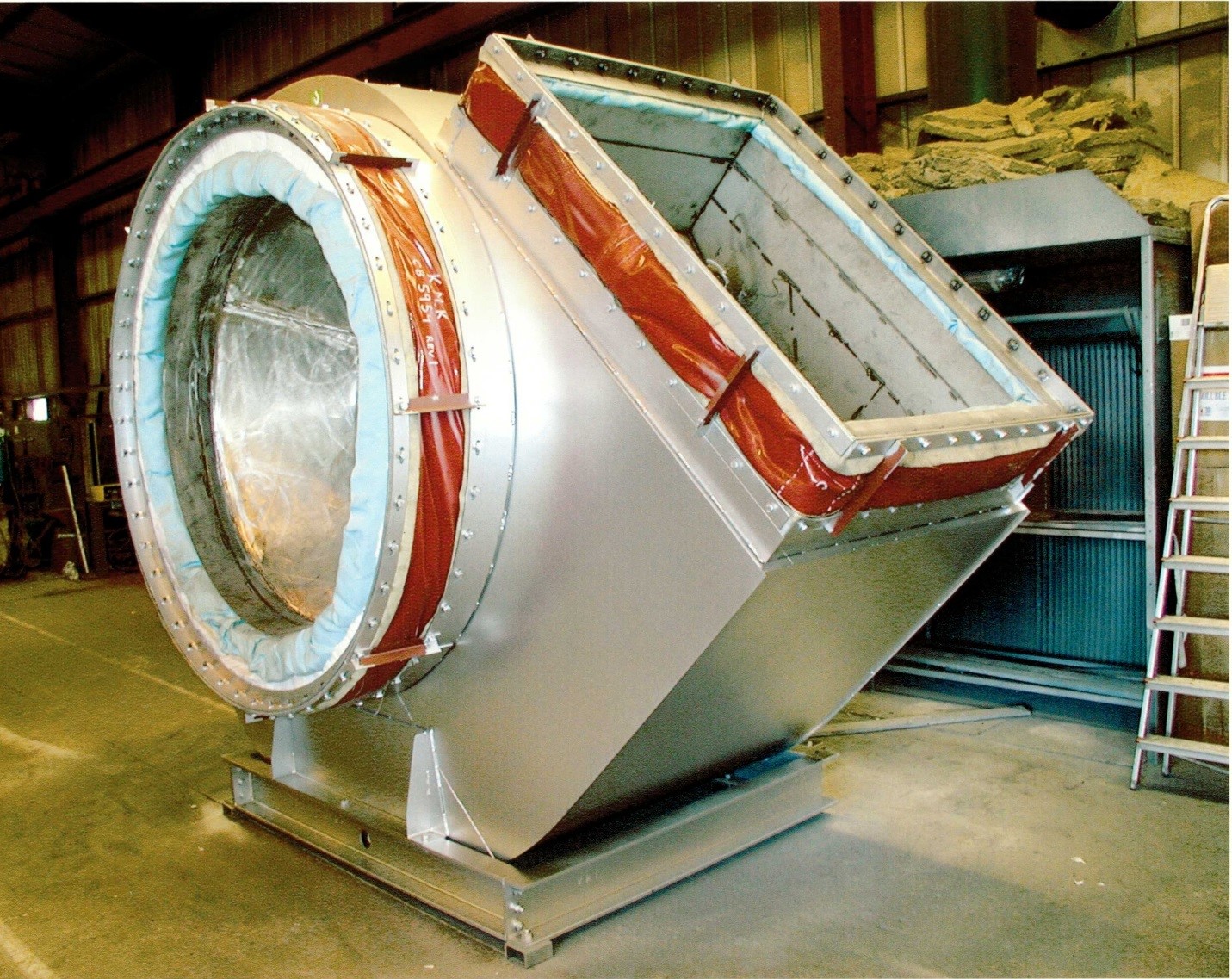

InsulatedScrollHousingAssembly
Insulated Scroll Housing Assembly.

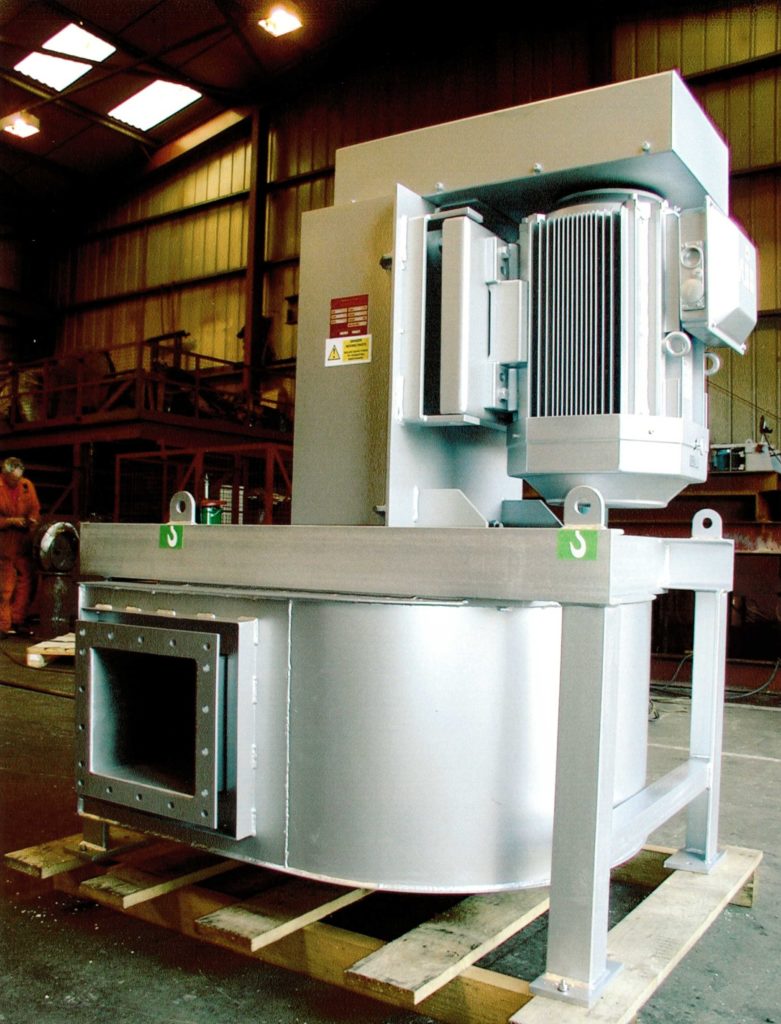

InsulatedBeltDriveScrollFanHousingAssembly
Insulated Belt Drive Scroll Fan Housing Assembly.

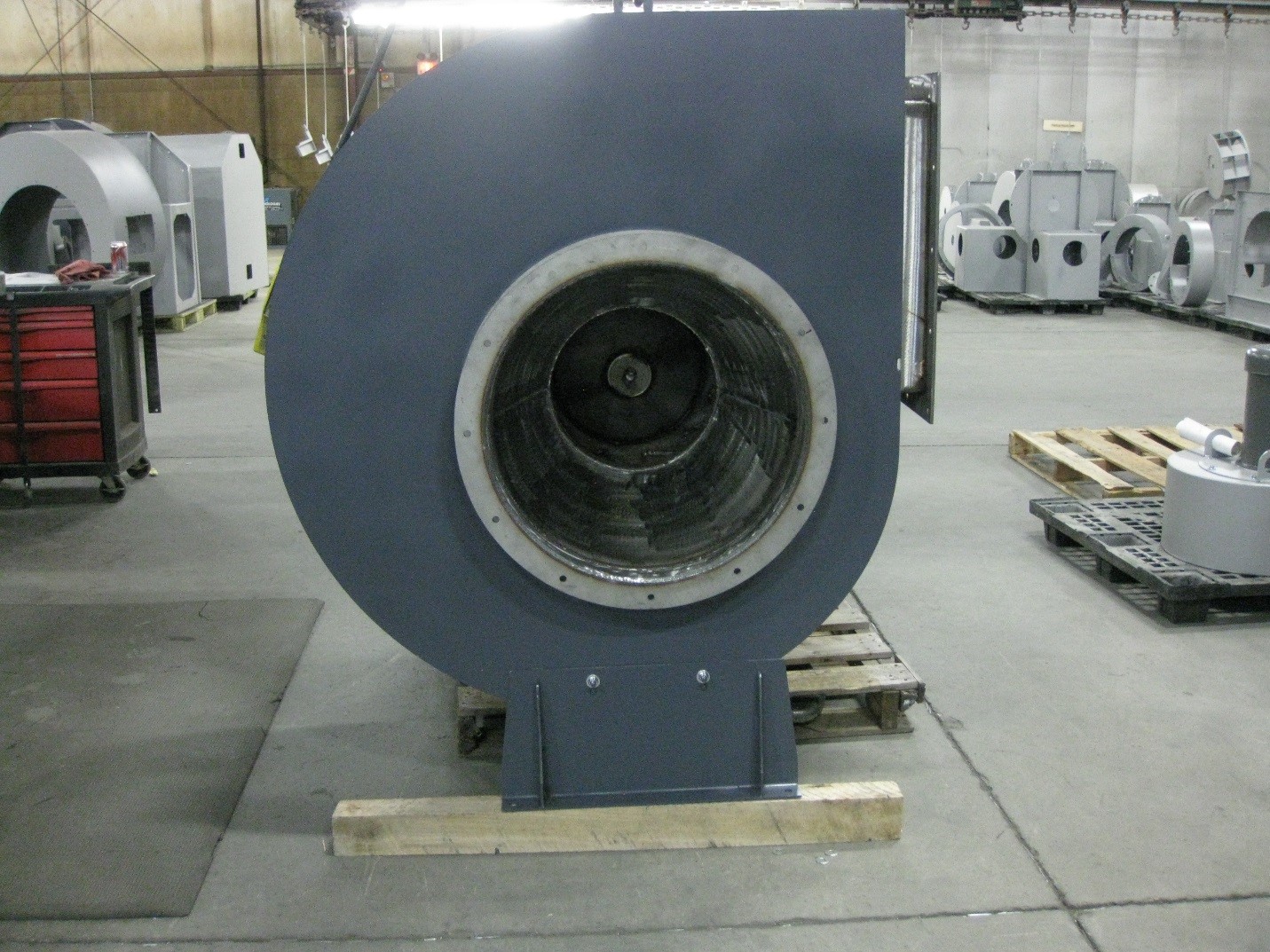

InsulatedScrollHousing
Insulated Scroll BIF (Backward Inclined) Housing

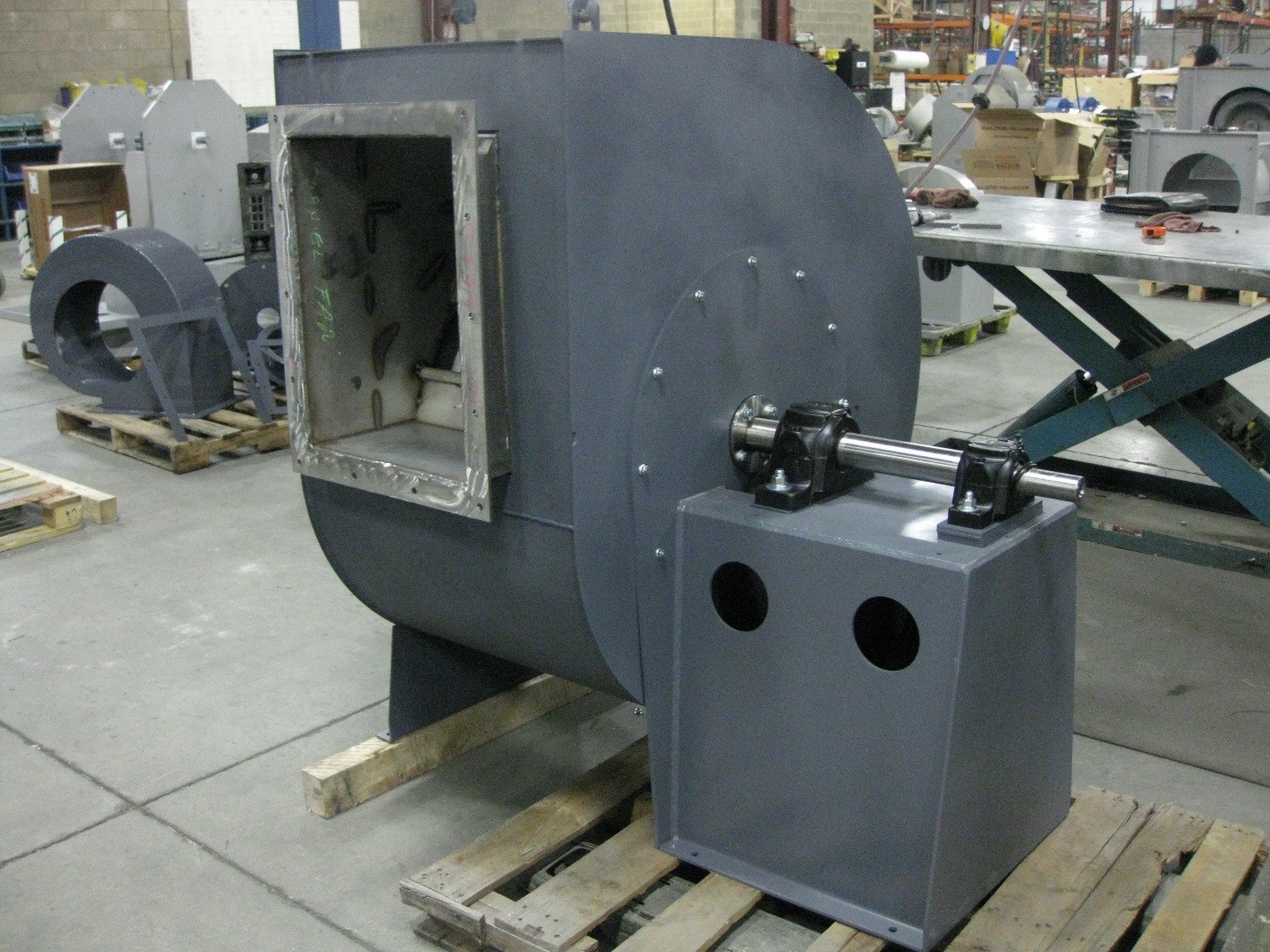

InsulatedScrollHousingArr1B
Insulated Scroll Fan Housing Arrangement 1.
